The Best Mesh Wi-Fi System of 2023

With one of these mesh Wi-Fi systems, you can get rid of dead spots and take advantage of continuous high-speed Wi-Fi connections.

Wifi Mesh System

With a mesh Wi-Fi system, you won’t have to worry about weak connections or dead spots anymore! Mesh Wi-Fi systems have a central router and numerous additional devices connected to them. This is in contrast to conventional routers, which only have one network device. You can get continuous connectivity under a single network identifier and eliminate dead or weak areas by strategically placing these nodes throughout your area. These routers are highly modular and scalable as well.

These routers cover your entire house or business area with a constant signal. Upgrading to a mesh Wi-Fi system is highly recommended, especially for those who often encounter dead spots or need to cover a broad area. When it comes to performance, these routers can surpass even the most incredible Wi-Fi extenders.

All the popular mesh Wi-Fi systems have been tested and reviewed by us to establish their performance, range, and usability to help you pick the best one!

How We Picked

  • Internet Speed

    A mesh Wi-Fi network won't automatically speed up your internet connection and will function at the rate your Internet service provider allows. Different service providers give different internet speed options, so we chose options with great speed to ensure smooth and hassle-free usage.

  • Malware Protection

    Great mesh systems come with security plans that ensure the safety of your online activities. While these may vary according to the package you subscribe to, they are essential depending on what you intend to use the system for. This is also worth considering, as subscriptions amount to lifelong costs.

  • Range and Strength

    The area that the mesh system covers and its ability to connect and prevent dead spots are two options that were considered. We would not want you to pay to eliminate dead spots only to have a few remain. Therefore, range and strength were relevant factors in our selection.

  • Cost-Effectiveness

    Each item on this list has been hand-picked as the best mesh Wi-Fi system currently available. We highlight products that provide the best value and explain why they may be the ideal option for your home, whether the focus is on performance, price, or features.

Our Top Picks

Best Pick

ASUS ZenWi-Fi AX6600

ASUS ZenWi-Fi AX6600

Mix ZenWi-Fi with AiMesh-compatible routers to form a powerful and flexible whole-home Wi-Fi system.

Enjoy fast, secure Wi-Fi anywhere in your area! Thanks to its wide range, tri-band design, and adjustable backhaul technology, the ZenWi-Fi AX has a bandwidth of 160 MHz and a modulation scheme of 1024-QAM, allowing noticeably quicker wireless communications. ZenWi-Fi AX's overall networking speed of 6600 Mbps is up to 2.2 times faster compared to tri-band AC3000 (Wi-Fi 5).

Buy Now for $349.99

When used simultaneously, the two ASUS AX6600 Wi-Fi 6 routers included in the ZenWi-Fi AX system can cover an area as large as 5500 square feet, or around six standard-sized rooms.

Runner Up

NETGEAR Orbi Quad-Band

NETGEAR Orbi Quad-Band

Engineered to deliver unprecedented coverage and performance across your whole home.

Its latest and most up-to-date Wi-Fi technology allows the user to simultaneously stream video to every screen at home without any lag or interruption. With Orbi's exclusive Quad-Band technology, a dedicated Wi-Fi band links the router to the satellites, guaranteeing a superior Gigabit speed everywhere at home. One 2.5 G and three 1 G Ethernet ports in each router and satellite enable lightning-fast wired connections to desktops, laptops, game consoles, and many other media devices.

Buy Now for $1,499.00

With speed up to 10.8 Gbps and coverage up to 9,000 square feet, this system is one of the fastest and most powerful whole-home Wi-Fi solutions currently available.

Most Cost-Effective

Vilo Mesh Wi-Fi System

Vilo Mesh Wi-Fi System

A Wi-Fi system that helps you do it all. These plug-and-play routers can increase coverage considerably.

You and your loved ones can relax knowing that your data in the cloud is encrypted using the military-grade standard of AES-256 and that your Wi-Fi network is protected using AES-128. A three-pack of Vilo mesh Wi-Fi systems offers a range of 4,500 square feet, covering even the farthest corners of your home. Additional plug-and-play Vilo mesh Wi-Fi routers can be easily used to expand Wi-Fi coverage.

Buy Now for $99.99

The Vilo mesh Wi-Fi system is a simple and fast way to fix the problem of dead spots in your home network. With Vilo, your entire home is blanketed in stable Wi-Fi signals.

Almost Made the Cut

TP-Link Deco AXE5400

TP-Link Deco AXE5400

Embrace the Power of Wi-Fi 6E. Also, enjoy no issues or interruptions from older gadgets with this router.

Achieve throughputs of up to 5,400 Mbps for 200 devices with a combined speed of three Wi-Fi bands, namely: 6 GHz: 2402 Mbps (HE160); 5 GHz: 2402 Mbps (HE160); and 2.4 GHz: 574 Mbps. It can be used with any ISP and any kind of modem, and it will operate with any version of the Wi-Fi standard.

Buy Now for $399.99

Experience the newest Wi-Fi frequency, which prevents interference from older gadgets. Further improving the Wi-Fi performance of devices that don't use the 6E standard is the 6 GHz band's robust dedicated backhaul.

Everything We Recommend

Best Pick

ASUS ZenWi-Fi AX6600

ASUS ZenWi-Fi AX6600

Mix ZenWi-Fi with AiMesh-compatible routers to form a powerful and flexible whole-home Wi-Fi system.

$349.99

Buy Now

Runner Up

NETGEAR Orbi Quad-Band

NETGEAR Orbi Quad-Band

Engineered to deliver unprecedented coverage and performance across your whole home.

$1,499.00

Buy Now

Most Cost-Effective

Vilo Mesh Wi-Fi System

Vilo Mesh Wi-Fi System

A Wi-Fi system that helps you do it all. These plug-and-play routers can increase coverage considerably.

$99.99

Buy Now

Almost Made the Cut

TP-Link Deco AXE5400

TP-Link Deco AXE5400

Embrace the Power of Wi-Fi 6E. Also, enjoy no issues or interruptions from older gadgets with this router.

$399.99

Buy Now

Who This Is For

You may want to consider a mesh-networking kit if you live in a spacious home too large for a single powerful router to cover; likely anything over 2,300 square feet, depending on the layout, is considered large. This router works best in a large apartment, a small house with signal-killing interior walls, or in a home, like a three-story townhouse, with an extremely long or tall, narrow layout.

What is a mesh Wi-Fi system?

A mesh Wi-Fi router, also known as a mesh system, connects multiple wireless access points so that they can all contribute to a single, seamless network that can be easily expanded to cover even the largest homes or buildings. It’s possible that a mesh Wi-Fi router system would be the best option if you moved from a smaller dwelling and your previous Wi-Fi router was unable to provide the same level of wireless connectivity.

Mesh Wi-Fi system vs. Wi-Fi extenders

Typically, Wi-Fi range extenders will join an already established wireless network, broadcast a new network name, and transparently retransmit data back to the primary wireless router. In contrast to an extender, which can be added to an already-established Wi-Fi network, a mesh system is often installed in place of your existing WiFi. They work in tandem with your existing router and are intended to replace your complicated router and extender configuration with a number of similar units strategically placed throughout your home and used concurrently.

Is a mesh Wi-Fi system worth it?

A mesh Wi-Fi system may be the answer if your current network frequently disconnects or creates “dead spots” throughout the coverage area. Given that their coverage gaps filling design is tailored to these conditions, they are ideal for larger or older homes with thicker walls.

Why You Should Trust Us

Each mesh Wi-Fi system is put through testing to determine its speed and coverage area. We also consider each device’s simplicity of use and functionality. To determine the maximum quantity of data that a router can transfer, we conduct our tests at a distance of five feet from it, free of any obstacles. Video streaming, online gaming, and other data-intensive activities, as well as multi-user connections, all greatly benefit from increased throughput. We evaluate the maximum coverage area of a mesh Wi-Fi system and the data transfer rates at five, 50, 75, and 100 feet from the router. We also evaluate the range and capacity of each system to cover a two- or three-story home, as well as its ability to broadcast and receive signals through common building materials. Each system is put through additional testing to see how well it communicates both with the main router and with the attached satellite devices.

How We Picked

Internet Speed

Theoretically, the speed of your mesh Wi-Fi system will be proportional to the number of bands employed. Some of the most advanced mesh Wi-Fi systems may reach lightning-fast speeds of up to 5.4 GB/s. However, the best ones often top out between 1 GB/s and 3 GB/s. Though most people won’t be able to take full advantage of the maximum speed allowed on their connection, having a device with a greater total speed is still preferable.

Malware Protection

The built-in safety measures and parental controls of each product are also evaluated. Many manufacturers have included ongoing expenses, which can add up over time, in their finest mesh Wi-Fi systems. This is especially true for apparently vital features such as parental controls. We’ve singled these out in particular since some of the more expensive memberships include extra online security solutions that you may already be paying for with other providers but that we feel are worth mentioning on their own.

Range

Some mesh Wi-Fi systems can cover more space than that, but ideally, they should cover at least 2,000 square feet. It’s important to calculate the total area that needs to be enclosed, including any external spaces like gardens and balconies that you’d like to be a part of the network.

Strength

If you install a mesh kit at a strategic location, you’ll have coverage throughout the entire house. We evaluated each kit’s performance in both ideal and challenging environments, gauging how well the mesh signals were able to be routed around obstructions like appliances and walls.

Price vs. quality

When deciding on a mesh Wi-Fi system, the most important factor for many buyers is the value offered by the system. That’s why we factor in the value you get for your money by analyzing the importance of various features and making comparisons to similar products from other brands.

Bandwidth

Newer wireless routers typically broadcast networks on two frequencies, one with a longer range (2.4 GHz) but lower speed (typically 5 GHz), and another with a shorter range (100 meters or less) but higher speed. Dual-band, or 5 GHz and 2.4 GHz, is the standard for mesh Wi-Fi networks, however, some variants also include a third, overlapping 5 GHz band (known as tri-band). This means that the Wi-Fi access points can use one band to communicate with one another, freeing up the other two to maintain a stable connection. Sometimes called “tri-band,” the 6 GHz frequency band is included in the coverage of modern mesh systems with Wi-Fi 6E (more on that below). We also considered this, since it’s important to determine which of these you’re dealing with to know how it’ll affect connections and speed.

Safety features

We considered the placement of the switches and checked to see if the network systems come with safety features in case you may want to hit an emergency switch. We also considered the material used to make the devices to know how insulated they were.

Compatibility

Support for Wi-Fi 6 and Wi-Fi 6E in terms of compatibility with older Wi-Fi standards was something we also considered. While a large number of your gadgets might still lack support for Wi-Fi 6 or 6E. It is becoming increasingly commonplace, and we would not like you to be outdated.

Our Picks For You

Our Top Pick - ASUS ZenWi-Fi AX6600

Best Pick

ASUS ZenWi-Fi AX6600

ASUS ZenWi-Fi AX6600

Mix ZenWi-Fi with AiMesh-compatible routers to form a powerful and flexible whole-home Wi-Fi system.

Enjoy fast, secure Wi-Fi anywhere in your area! Thanks to its wide range, tri-band design, and adjustable backhaul technology, the ZenWi-Fi AX has a bandwidth of 160 MHz and a modulation scheme of 1024-QAM, allowing noticeably quicker wireless communications. ZenWi-Fi AX's overall networking speed of 6600 Mbps is up to 2.2 times faster compared to tri-band AC3000 (Wi-Fi 5).

Buy Now for $349.99

Who It’s For

The ASUS AiMesh Wi-Fi system is the best option for those who want a reliable, uninterrupted, and safe wireless network throughout their home.

Why It’s Great

It comes with robust capabilities, an intuitive interface, and an unlimited Wi-Fi range. It ingeniously links many ASUS routers that are AiMesh-compatible and provides smooth Wi-Fi coverage across the desired area.

Potential Flaw/s

This network system is expensive, and a web console is needed for more complex settings. You may want to check out the Vilo Mesh Wi-Fi System if you are looking for less expensive options.

Other Features

The system's high performance and power requirements make it more expensive than some other Wi-Fi 6-mesh networks we tested. However, it has a set of powerful parental controls and network security measures that were not present in the competing systems.

The ZenWi-Fi AX XT8 system, which consists of two devices, can cover residences up to 5,500 square feet in size due to the system's ability to send signals across each of the two nodes (Asus rates each node as covering 2,750 square feet). A small LED indicator on the front panel of the enclosure changes color from blue during setup to white when the satellite node communicates successfully with the router over wireless, and from yellow to red when the connection becomes unstable. Components inside the enclosure are cooled by airflow through grills on both sides. Three wired gigabit Ethernet connections, a 2.5G LAN port, a USB 3.1 port, a power switch, and a power jack can be found at the back of the device. If you'd rather not dedicate the second 5 GHz band to backhaul and leave the first 5 GHz band available for client use, you can use the LAN ports for Ethernet backhaul instead.

Wi-Fi 6 is implemented in the XT8 with cutting-edge 802.11ax technology. That's why it can handle 20/40/80/160 MHz of bandwidth, multiple-input multiple-output (MU-MIMO) simultaneous data streaming, and direct-to-client signal beamforming in addition to WPA3 encryption, 1024 QAM, and OFDMA data transfers. The maximum data rates for the tri-band AX6600 system are 574 Mbps on the 2.4 GHz band, 1201 Mbps on one of the 5 GHz bands, and 4804 Mbps on the other 5 GHz band. Six internal antennae, a 1.5 GHz quad-core CPU, 512 MB of RAM, and 256 MB of flash memory are included in each node.

Asus's AI Protection Pro is included for free on the XT8 for the rest of the time. This Trend Micro-backed software bundle includes protection from malware as well as parental controls. Internet threats like denial of service and password attacks are prevented by scanning all incoming and outgoing data using AI Protection's IPS (Intrusion Prevention System) technology. In addition to preventing access to harmful websites, it also detects and blocks infections in any data sent or received by clients on your network.

The Asus Router mobile app (for iOS and Android) and an online console are also available for controlling the XT8. To access more advanced features like RADIUS server and VPN settings, as well as professional settings where you can configure things like RTS threshold, beacon interval, and TX burst settings, and to view detailed system logs, the web console is required. The good thing is that everything else can be accessed through the intuitive mobile app.

Easy and quick mesh networking, compatibility with Wi-Fi 6, and powerful security capabilities to protect your family and your data online are just a few of the features offered by this platform. Even better, you can control it from anywhere thanks to the accompanying smartphone app.

Product Specifications

Wireless Specification: 802.11ax
Number of Bands: 3
Total Rated Throughput: AX6000
Number of Antennas: 6
LAN Ports: 3 on router / 4 on node
MU-MIMO: Yes
Security: WPA3, WPA, WPA2
Coverage Area: 5500 sq ft
Nodes: 2
Wired Backhaul: Yes
Anti-Malware Tools: Yes

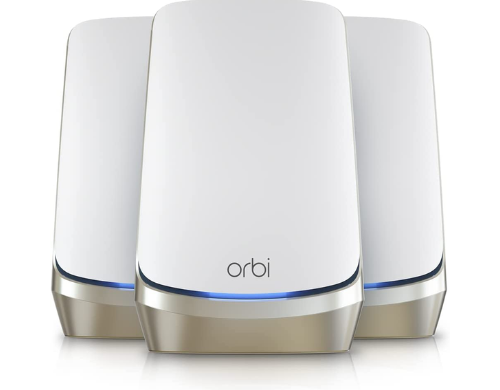

Runner Up - NETGEAR Orbi Quad-Band

Runner Up

NETGEAR Orbi Quad-Band

NETGEAR Orbi Quad-Band

Engineered to deliver unprecedented coverage and performance across your whole home.

Its latest and most up-to-date Wi-Fi technology allows the user to simultaneously stream video to every screen at home without any lag or interruption. With Orbi's exclusive Quad-Band technology, a dedicated Wi-Fi band links the router to the satellites, guaranteeing a superior Gigabit speed everywhere at home. One 2.5 G and three 1 G Ethernet ports in each router and satellite enable lightning-fast wired connections to desktops, laptops, game consoles, and many other media devices.

Buy Now for $1,499.00

Who It’s For

Orbi RBKE963 is worth a look for those with very spacious homes (up to 9,000 square feet) and deep pockets. If you want to outfit your home with the most cutting-edge Wi-Fi technology, this is the router for you.

Why It’s Great

With the latest Wi-Fi 6E technology, the Netgear Orbi RBKE963's three-piece mesh system can get into the less-congested 6 GHz radio spectrum. This astronomically priced device has exceptional signal range and exceptionally rapid throughput speeds. It's simple to set up and features only high-end parts.

Potential Flaw/s

Exorbitant prices, the absence of USB ports, and subscription-only functionality are the drawbacks of this mesh system. For equal performance, consider getting our top pick.

Other Features

It may take some savings to acquire the Netgear Orbi Wi-Fi Mesh System, but you'll be acquiring the most sophisticated mesh system on the market. With its included router and two additional satellite nodes, the Orbi RBKE963 system can cover homes as large as 9,000 square feet. It's possible to buy extra nodes if required. Twelve high-performance antennae are built into the interior of each node. They typically come in a white color scheme with chrome accents, although a black edition model is also available.

Even if the nodes appear to be the same, they are not. A 10 Gbps WAN port, a 2.5 Gbps LAN port, three 1 Gbps LAN ports, and a reset button are included in the router node. Similar to previous Orbi devices, this one lacks USB ports. A sync button may be found on the rear of the router for connecting it to additional nodes. An LED light on the front of the router flashes red if the firmware has been compromised; it remains solid amber during a restart and shines green when the router gets connected.

The satellite nodes don't have or even require a 10 Gbps WAN port, but they do include a reset button, a sync button, a 2.5 Gbps LAN port, and three 1 Gbps LAN ports. When connected to the router successfully, the node's LED indicator lights up a steady blue, becomes amber when the connection is weak or intermittent and stays solid magenta when it can't find the router. If you want to boost reliability, you can use the 2.5 Gbps connector to set up a cable backhaul instead of the satellites' wireless option, which uses one of the 5 GHz bands.

Among the RBKE963's many features are a 2.2 GHz quad-core processor, 1 GB of RAM, and 512 MB of flash memory. The maximum throughput of this quad-band AX11000 system is 4,800 Mbps on the 6 GHz band, 2,400 Mbps on both of the 5 GHz bands, and 1,200 Mbps on the 2.4 GHz band. It is compatible with all the cutting-edge features of Wi-Fi 6, such as OFDMA (orthogonal frequency division multiple access), 1024-QAM signal modulation, 160 MHz channel bandwidth, WPA3 encryption, direct-to-client signal transmissions, also known as beamforming, and MU-MIMO simultaneous data streaming. It also makes use of Wi-Fi 6E technology to establish links with customers over the 6 GHz frequency range. Client devices must support 6E in order to access the 6 GHz band, but older devices can also be connected to the mesh network.

The Orbi system includes Netgear's Smart Parental Controls, which let you set up user profiles, limit users' access to the internet, and set time limits. More advanced parental controls, such as material screening depending on age, internet time awards, internet time limitations, and comprehensive browsing history records, are available with a paid premium subscription.

The 30-day trial version of Netgear's Armor network security software, powered by Bitdefender,r is also included. This service checks for malware and prevents it from infecting any device on your network. The RBKE963 system can be managed remotely from a computer or mobile device using the Orbi app. Manage access control lists, set up an IoT network for all of your smart devices, and configure VPN settings—all of which are unavailable in the app but are available via the web console.

Product Specifications

Wireless Specification: 802.11axe
Total Rated Throughput: AX11000
LAN Ports: 4 on router / 4 on node
Number of Bands: 4
Number of USB ports: None
Number of Antennas: 12
MU-MIMO: Yes
Security: WPA2, WPA3
Anti-Malware Tools: Yes
Coverage Area: 9000 sq ft
Nodes: 3
Wired Backhaul: Yes

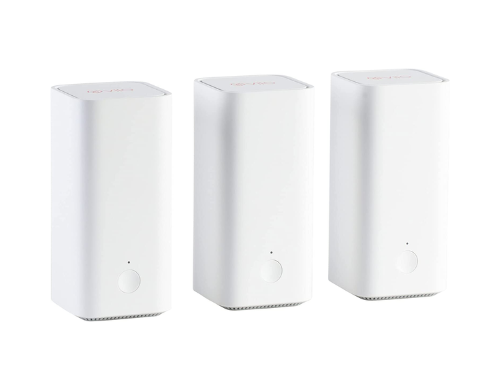

Most Cost-Effective - Vilo Mesh Wi-Fi System

Most Cost-Effective

Vilo Mesh Wi-Fi System

Vilo Mesh Wi-Fi System

A Wi-Fi system that helps you do it all. These plug-and-play routers can increase coverage considerably.

You and your loved ones can relax knowing that your data in the cloud is encrypted using the military-grade standard of AES-256 and that your Wi-Fi network is protected using AES-128. A three-pack of Vilo mesh Wi-Fi systems offers a range of 4,500 square feet, covering even the farthest corners of your home. Additional plug-and-play Vilo mesh Wi-Fi routers can be easily used to expand Wi-Fi coverage.

Buy Now for $99.99

Who It’s For

The Vilo Mesh Wi-Fi system is a good option if you need to eliminate dead spots in your network without opting for a more expensive solution that employs the newest Wi-Fi 6 technology.

Why It’s Great

We found the Vilo Mesh Wi-Fi System to be the most cost-effective three-piece mesh system on the market. It's not the fastest or most reliable option and uses an older version of Wi-Fi 5 (802.11ac). Nevertheless, it's simple to set up and control has a respectable wireless range, and includes convenient parental controls that allow you to restrict or permit internet use at specific times or for specific devices.

Potential Flaws

Poor throughput performance, no USB support, a lack of security against viruses due to its aging technology, and the absence of QoS customization are its major drawbacks. If security is one of your top priorities in a mesh system, you may want to consider going for our top pick instead of spending on the Netgear Orbi Wi-Fi Mesh.

Other Features

Three of the Vilo Mesh's nodes are identical, so they can cover up to 4,500 square feet. If such vast coverage is not required, a single node that covers up to 1,500 square feet can be purchased for a few bucks. Each node is 5.9 by 2.7 by 2.7 inches (HWD), comes with three gigabit LAN ports, and has four internal antennae; they are all white with a matte finish. There are no multi-gigabit or USB ports on this system. Each node has a mesh button on the front for pairing purposes and a tiny LED that is blue when the node is connected to the internet, red when starting up, flashes blue when internet connectivity is spotty and flashes amber during the pairing process.

This is a dual-band Wi-Fi 5 (802.11ac) system, capable of transfer rates of up to 867 Mbps on the 5 GHz band and 300 Mbps on the 2.4 GHz band. Although it lacks support for the newest Wi-Fi 6 technology, it does work with MU-MIMO for simultaneous data streaming, direct-to-client beamforming, and automatic band steering. It has a 999 MHz MIPS processor, 128 MB of RAM, and 16 MB of flash storage. To switch to a wired backhaul configuration, you'll need to reset the satellite nodes to their factory defaults after installation, even if the system ships with a wireless backhaul configuration.

The Vilo Living app, available for both Android and iOS smartphones, is used for the setup and management of the system. When launched, the application presents the user with a screen labeled "My Networks," which displays information about the connected nodes and devices on the Vilo network as well as the network's name.

Product Specifications

Wireless Specification: 802.11ac
Total Rated Throughput: AC1200
LAN Ports: 2 on a router, 3 on nodes
Number of Bands: 2
Number of USB ports: None
Number of Antennas: 12
MU-MIMO: Yes
Security: WPA, WPA2
Anti-Malware Tools: No
Coverage Area: 4500 sq ft
Number of Nodes: 3
Wired Backhaul: Yes

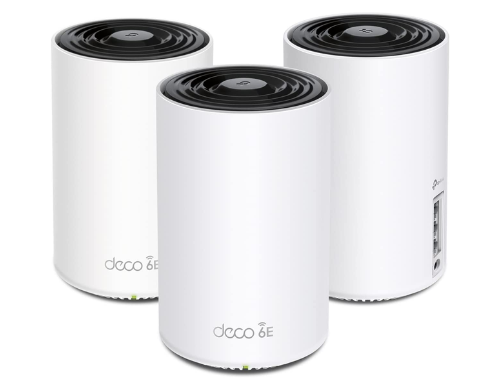

Almost Made The Cut - TP-Link Deco AXE5400

Almost Made The Cut

TP-Link Deco AXE5400

TP-Link Deco AXE5400

Embrace the Power of Wi-Fi 6E. Also, enjoy no issues or interruptions from older gadgets with this router.

Achieve throughputs of up to 5,400 Mbps for 200 devices with a combined speed of three Wi-Fi bands, namely: 6 GHz: 2402 Mbps (HE160); 5 GHz: 2402 Mbps (HE160); and 2.4 GHz: 574 Mbps. It can be used with any ISP and any kind of modem, and it will operate with any version of the Wi-Fi standard.

Buy Now for $399.99

Who It’s For

Since the XE75 Pro is somewhat pricey, it is best suited for those who already pay for or intend to pay for the highest internet speed tier offered by their service provider.

Why It’s Great

The TP-Link Deco XE75 Pro has Wi-Fi 6E and a multi-gigabit WAN connector, which are not available on the TP-Link Deco W7200. The latter is helpful if you are among the increasing number of people who have access to internet speed plans of 1 GB/s or greater.

Potential Flaw/s

This option is expensive, lacks USB ports, and requires a paid HomeShield subscription for some capabilities. Due to its price and the features it provides, we recommend that you either step up or down to our top pick or our cost-efficient option.

Other Features

The maximum square footage that TP-Link is compatible with is 5,500 ft. TP-Three-Part Link's system can cover up to 7,200 square feet, making it ideal for larger houses. The cylindrical nodes are reminiscent of the ones included in TP-Deco Link's W7200 system. They're 6.7 inches in height and 4.1 inches in width and are white with a black cap. When the node is starting up, a small LED indicator on the bottom will be solid yellow; when it is ready for setup, it will pulse blue; when it is connected and running well, it will be solid green; and when there is a fault, it will be solid red.

If your Internet service provider provides gigabit speeds or more, you'll appreciate the 2.5 GbE WAN port on the back of the device. Dual 1GbE LAN ports with auto-sensing and a power inlet are located on the rear of the device. There are four internal antennas and a 1.7 GHz quad-core processor in each node. There are no USB ports for attaching accessories.

The Wi-Fi 6E system, the XE75 Pro, uses the less-used 6 GHz radio band in addition to the more-common 2.4 GHz and 5 GHz frequencies. You can change the default setting in the configuration menu to make the 6 GHz band available to client devices instead of just wireless backhaul. Wired backhaul between nodes is possible via one of the LAN ports.

Theoretical throughput for the 2.4 GHz band of the AXE5400 system, which is the XE75 Pro, is up to 574 Mbps, with the 5 GHz and 6 GHz bands offering 2,402 Mbps and 2,402 Mbps, respectively. OFDMA packet transfers, direct-to-client beamforming, WPA3 encryption, MU-MIMO data streaming, and a channel bandwidth of 160 MHz are just some of the cutting-edge Wi-Fi 6 features it provides. Even though the XE75 Pro may be managed via a web console, we recommend utilizing the Deco mobile app instead.

Product Specifications

Wireless Specification: 802.11ax with 6E
Number of Bands: 3
Total Rated Throughput: AXE5400
Number of Antennas: None
LAN Ports: 3 on each node
MU-MIMO: Yes
Security: WPA3, WPA2, WPA
Number of Nodes: 2
Wired Backhaul: Yes
Anti-Malware Tools: No
Number of USB ports: None

Care and Maintenance

Setting up your mesh Wi-Fi system

Once you have zeroed in on a system, you can download its app. Unplug the router and use an Ethernet cable to connect it to the main node. Connect the router back to the main node and turn both on. You are asked to sign in to your mesh network account; you will have to create one if you don’t already have one. You can then link your account to the main node by scanning the QR code provided at the bottom of the main node or entering the serial number. When asked, give the main node a name or an address. You can always add nodes later if it becomes too large or too small. One by one, plug in the nodes. After you add your planned nodes, check the speed of your network in each room of your house and anywhere outside.

Where to place your mesh Wi-Fi system

Depending on the size and layout of the property, strategically placing mesh Wi-Fi units is a bit of a science. The goal is to ensure that there are no dead zones in your home Wi-Fi network, which you will be extremely familiar with. It could be an entire floor, the garden, or a section of the property that is inaccessible due to an ungainly arrangement of the building’s structural supports. Before beginning, it’s wise to have a general notion of the total square meters you want to cover as well as the specific regions where you anticipate encountering the most difficulty. The coverage area is typically stated by the device and will provide a ballpark estimate as well as highlight any potential obstacles. In most cases, the primary hub must be located close to your Internet service provider’s router, and the additional satellites in a typical two- or three-pack should be put on separate floors for optimal coverage.

What slows down a mesh Wi-Fi system?

In addition to distance from the router, obstacles such as walls and floors can reduce the strength of your Wi-Fi signal. This signal degradation will slow down transmissions. However, the mesh system will not magically improve your connection speed if your ISP is providing a slow connection (or if you are on a more affordable plan with fewer features).
